LED Operation Lamp KS-7050 Ceiling type double lamphead
- Model Number
- KS-7050 Ceiling type double lamphead
- Place of Origin
- CHINA
- Price
- Distributor Price ＄
- Views
- Keywords
- medical lamp,medical light,surgical lamp,surgical light,examination lamp,examination light,reading light,x ray viewer,headlight,magnifying lamp
| Title | KS-700 standard | KS-500 standard |
| External Lamphead Diameter | 700mm | 500mm |
| Primary Voltage | 100-240V | 100-240V |
| Secondary Voltage | 24V | 24V |
| Illumination intensity Ec @1m distance | 20,000Lux-160,000Lux | 20,000Lux-160,000Lux |
| Adjustabel light field size | 200-380mm | 200-380mm |
| Color rendering index Ra | >85 | >85 |
| Color rendering index R9 | >85 | >85 |
| Remaining lighting with one tube (%) : | >99.9% | >99.9% |
| Remaining lighting with one mask (%) : | >60% | >40% |
| Remaining lighting with two masks (%) : | >50% | >50% |
| Remaining lighting with one tube and one mask (%) : | >60% | >40% |
| Remaining lighting with one tube and two masks (%) : | >50% | >50% |
| The total radiation intensity Ee | 511 W/m2 | 511 W/m2 |
| The ratio of irradiance Ee to Ec | 3.2 mW/(m2?lx) | 3.2 mW/(m2·lx) |
| Number of LED modules | 80 | 48 |
| Average life time of LED | ≥50000h | ≥50000h |
| Power consumption(W) | 85 | 85 |

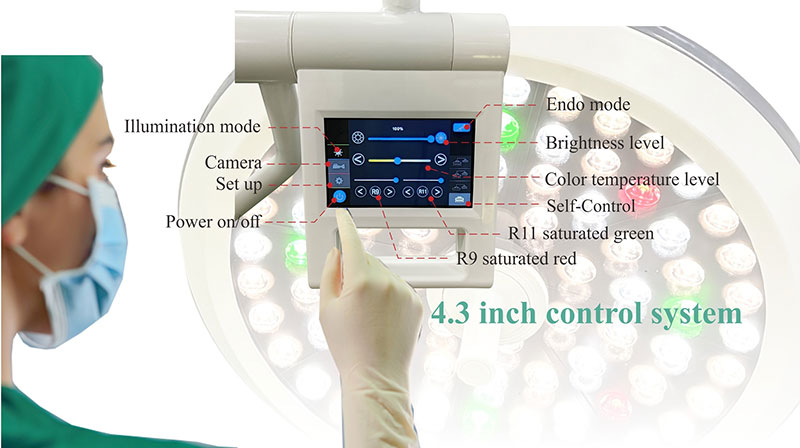

| Touchscreen control | 4.3 inch | 4.3 inch |
| ENDO Mode | YES | YES |
| Mechanical Focalization | YES | YES |
| Memory function | YES | YES |
| Standards: CE marked, according to 93/42 Directive and UE Rule 2017/745 (MDR) EN 60601-1, EN60601-1-2 and EN 60601-1-2-41 | ||
